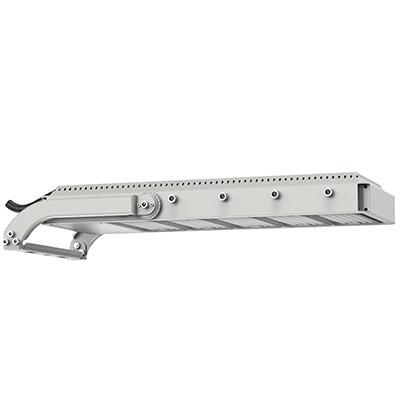

Detachable Outdoor LED Parking Lot Lights Waterproof Arena Sports Lighting

Name: Detachable Outdoor LED Parking Lot Lights Waterproof Arena Sports Lighting
Brand: SOGA
Price: 1 USD

Buy cheap Detachable Outdoor LED Parking Lot Lights Waterproof Arena Sports Lighting product

Brand Name : SOGA

Model Number : SG-JR-600W

Certification : ROHS CE IK09 IP66

Place of Origin : China

Payment Terms : L/C, Western Union, T/T

Supply Ability : 1000

Delivery Time : 15

Input Voltage : AC90-305V/AC108-528V

Housing : Aluminum

LED Brand : Lumileds 5050

Rotatable Modular Design : Horizontally15°

CRI : 70 80 90

Wattage/Module : 150W

Contact Now

Outdoor LED Sports Lights Arena Light Outdoor Waterproof With Detachable Electrical Box Outdoor Parking Lot

SPECIFICATIONS

Patented c series LED sports lights have an elegant appearance with die-cast modules, IK rating is IK08 Vertically and horizontally rotatable heat sink design makes every module flexibly targeting to specified point to get much better light uniformity on sports field. Upward light ratio=0 for light fixture with symmetrical beams and spill covers Upward light ratio=0 for light fixture with asymmetrical beams Optional long distance wireless control system and DMX control system

Input Voltage	AC90-305V/AC108-528V
Housing	Aluminum
Aluminum	Lumileds 5050
Rotatable Modular Design	Horizontally15°
CRI	70 80 90
Wattage/Module	150W
Operating Temp	-40℃ To 55℃
Dimming Solutions	0-10V Dimming, DALI, DMX, clo, Zigbee
Power Factor	Power Factor
CCT	3000K 4000K 5000K 5700K 6500K

MODEL	SG-JR-150W	SG-JR-300W	SG-JR-450W	SG-JR-600W	SG-JR-750W	SG-JR-900W	SG-JR-1200W	SG-JR-1500W
WATTAGE Symmetrica	150W	300W	450W	600W	750W	900W	1200W	1500W
MODEL QTY	1	2	3	4	5	6	8	10
LUMEN EFFICIENCY Symmetric	170LM/W	170LM/W	170LM/W	170LM/W	170LM/W	170LM/W	170LM/W	170LM/W
LUMEN OUTPUT	25,500LM	51,000LM	76,500LM	102,000LM	127,500LM	153,000LM	204,000LM	255,000LM

IP66 Ingress Protection

17 Grade windload Resistant

10KV Surge Protection

Detachable Outdoor LED Parking Lot Lights Waterproof Arena Sports Lighting

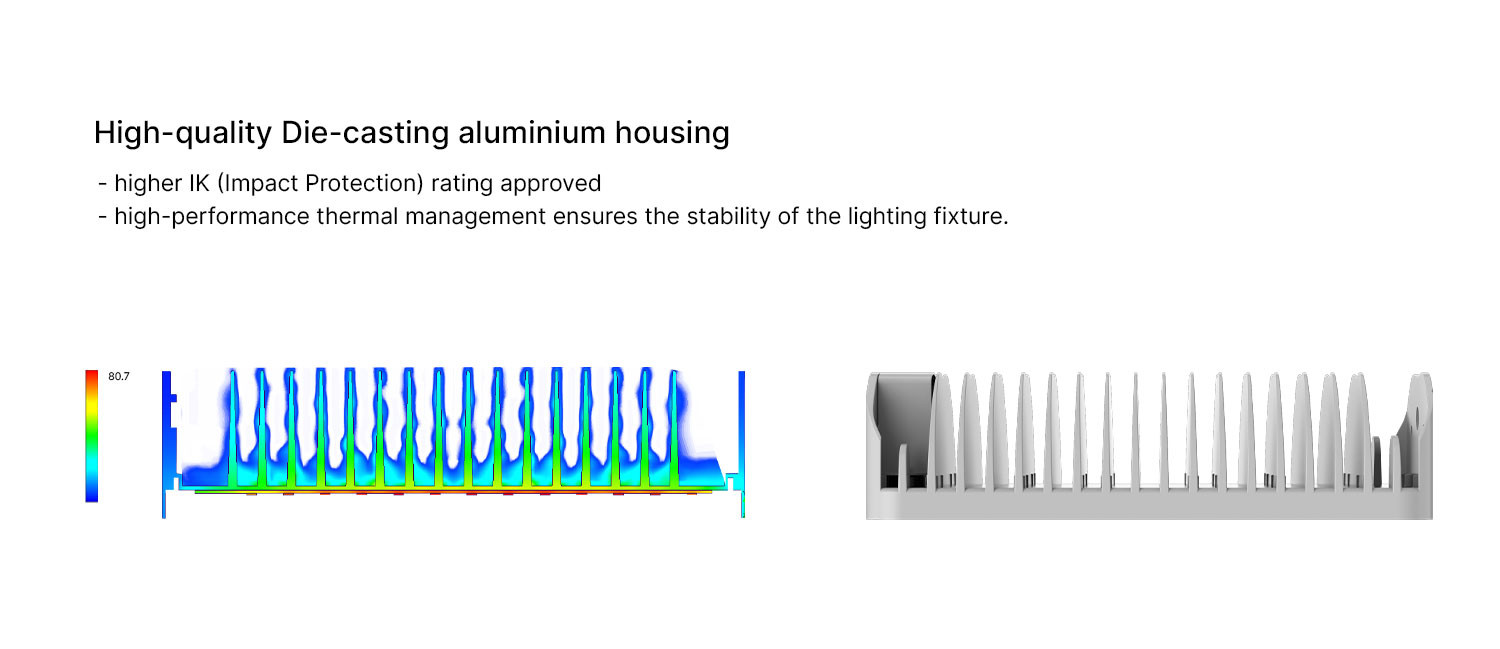

High-quality Die-casting aluminium housing

- higher IK (Impact Protection) rating approved

- high-performance thermal management ensures the stability of the lighting fixture.

Detachable Outdoor LED Parking Lot Lights Waterproof Arena Sports Lighting

service

with the "User first, customer first" Company motto, quality assurance , economic price , fast Delivery time is our only faith. we will try our best to make every customer to enjoy the the most flexible,efficient services.We sincere hope that we can seek the common development and cooperation with the customer together to achieve a win-win situation.

Detachable Outdoor LED Parking Lot Lights Waterproof Arena Sports Lighting
